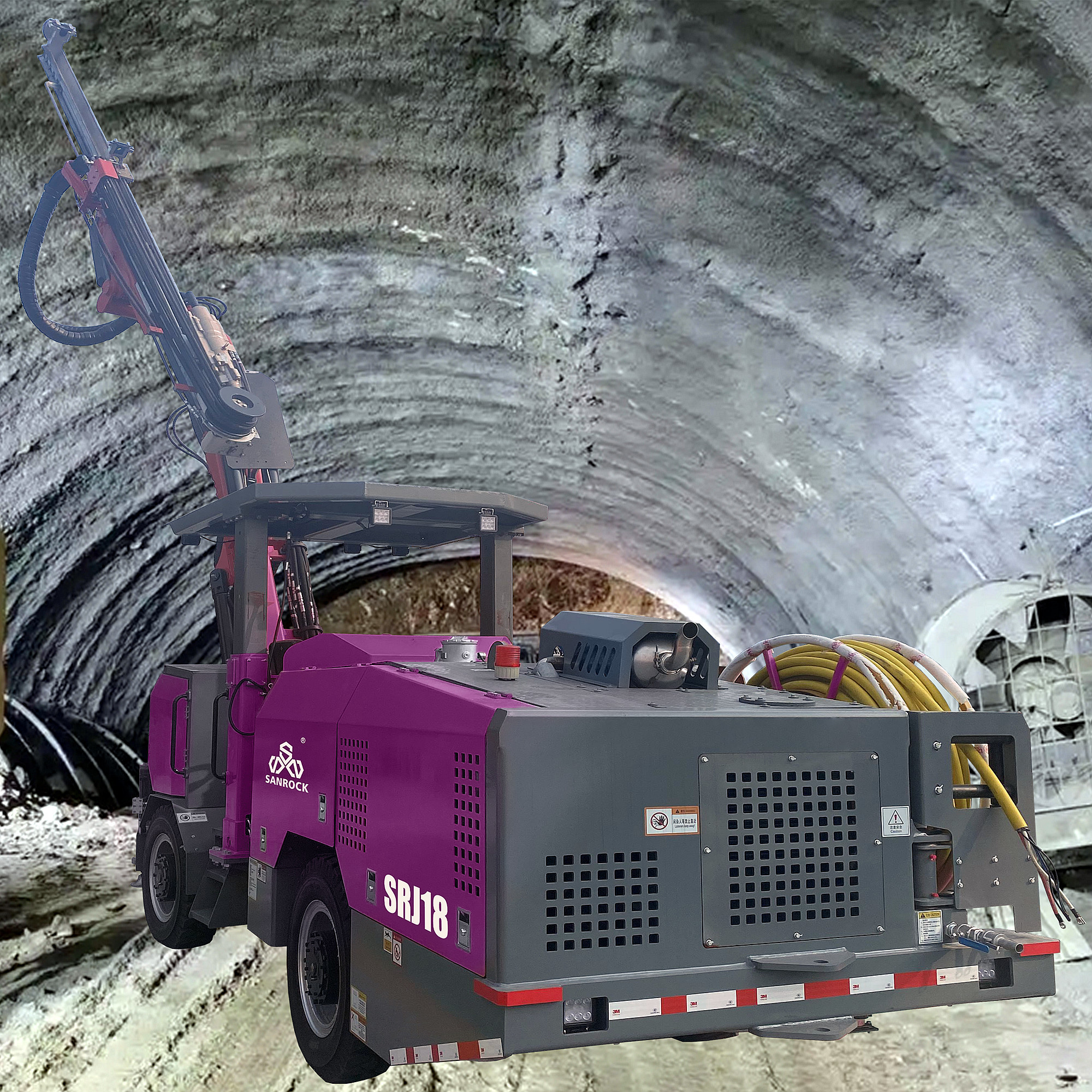

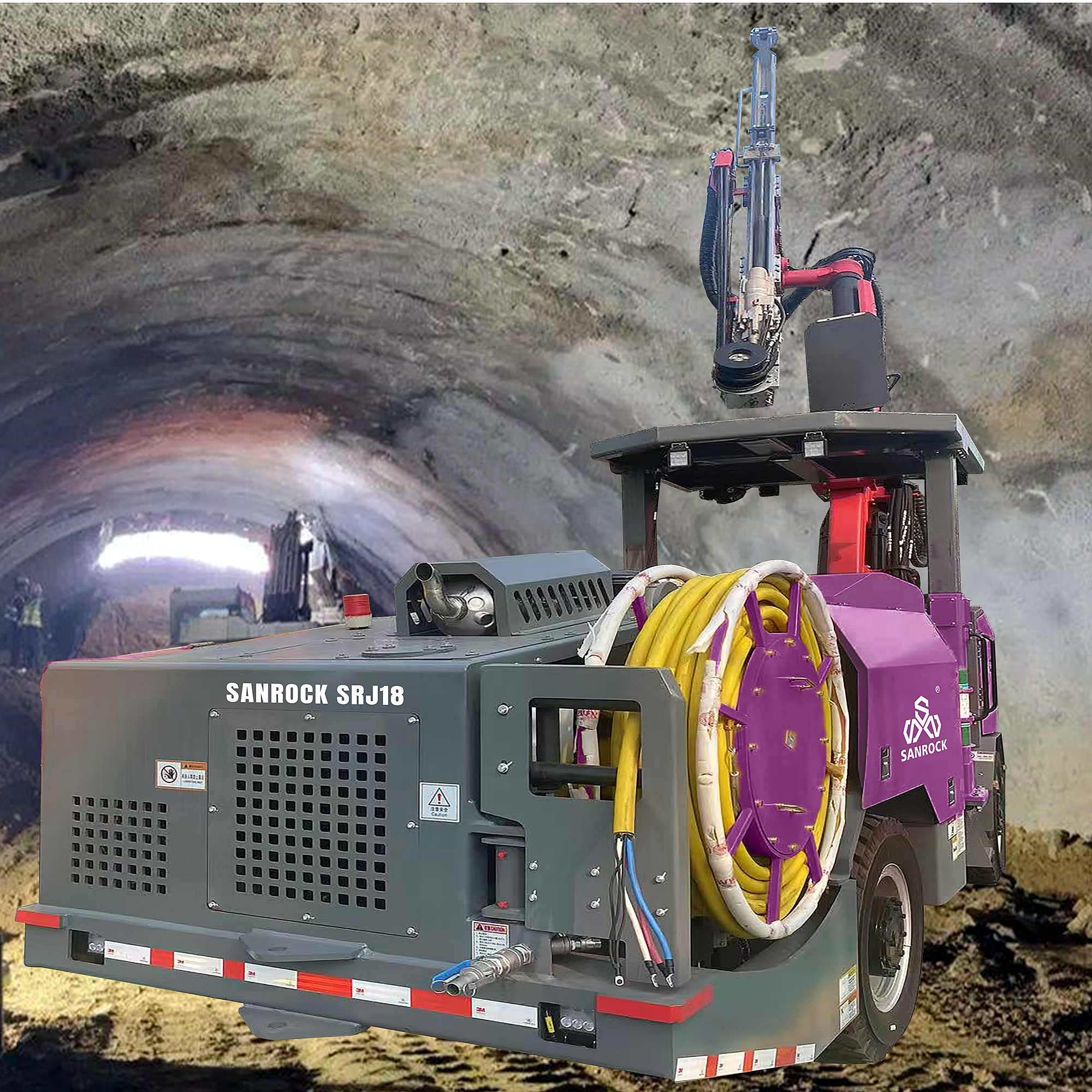

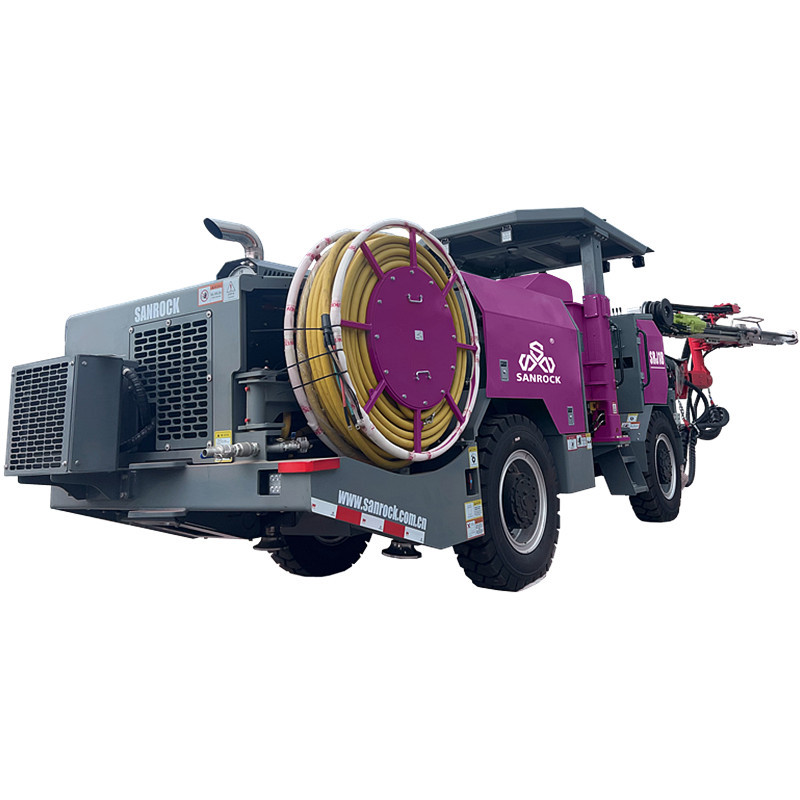

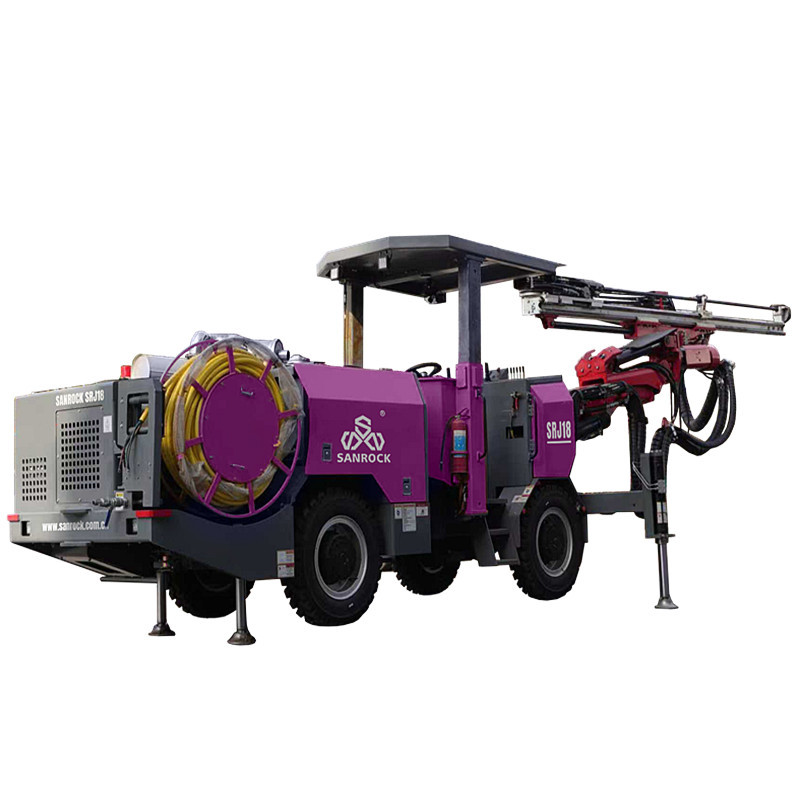

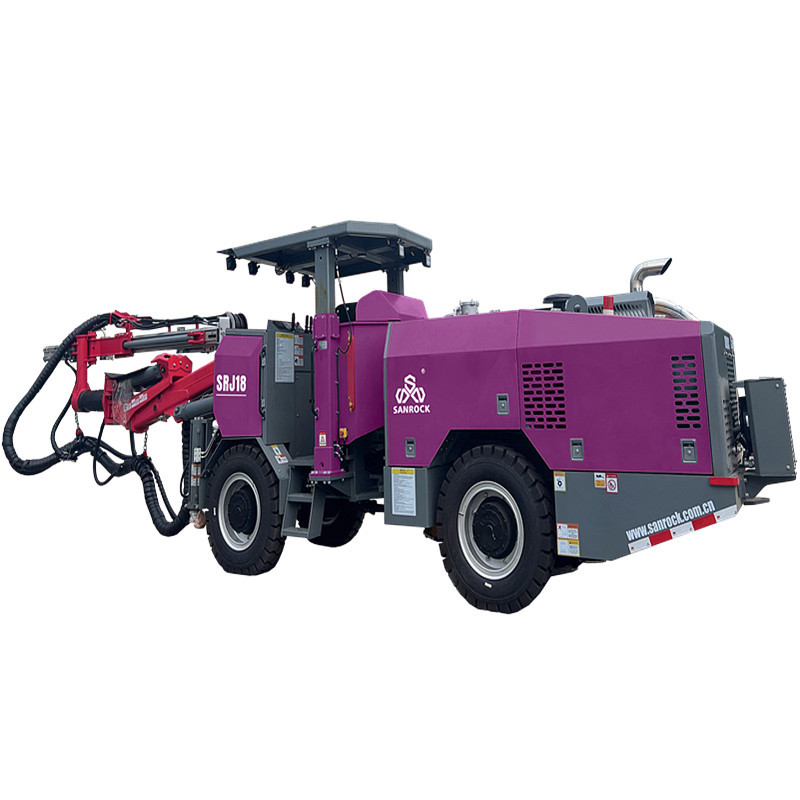

SANROCK SRJ18 Underground Jumbo Drilling Rig Scope of application One-boom face drilling rig for medium sized underground drifts,
with coverage area 7-35m².
Main benefits
> Optimized: for small to medium size tunnels and drifts down to 2.4 m widex2.9 m high,
up to 6 m widex6 m high.
>Economical and efficient: with automatic drilling, automatic return and anti-jamming functions increased the service life of drilling tools.
> Intelligent: with function of real-time monitoring and evaluation of construction conditions by digital recording data of the number and depth of holes.
>Safe and simple operation: equipped with automatic diagnosis and voice alarm system. High popularity: and good after-sales service support.
Tunnel Jumbo Drilling Rig Construction
In large-scale tunneling projects, heavy-duty tunnel jumbos are deployed to execute high-efficiency drilling operations. These drilling rig, equipped with multiple robotic booms and high-torque drilling systems, are designed to bore blast holes, rock anchor holes, or ventilation channels across extensive tunnel sections.
For mega-tunnels, synchronized jumbo fleets work in tandem to accelerate progress, minimizing downtime and adapting dynamically to complex rock formations. Post-drilling, explosives or reinforcement materials are strategically installed to enable controlled excavation and long-term structural stability.
Enhanced Safety
Reinforces ground stability by installing support structures (anchors/bolts) to prevent tunnel collapse and rockfalls.
Minimizes risks for workers during excavation in unstable geological conditions.
High Efficiency
Enables rapid drilling and anchoring operations, accelerating project timelines.
Reduces manual labor through automated or semi-automated systems.
Products Description
|
Product name:jumbo drilling rig
|
|
|
Model
|
SRJ18
|
|
Maximum Coverage Area(H*W)
|
2.9*2.4m
|
|
Minimum Coverage Area(H*W)
|
6.3*6.5m
|
|
Overall Dimension(L*W*H)
|
11700*1800*2100/2900mm
|
|
Weight
|
13.6T
|
|
Turning Radio Outer/Inner
|
5600/3150mm
|
|
Rock Drill Range
|
Ф41-76mm
|
|
Rock Drill Power
|
18kw
|
|
Rock Drill Rate
|
60Hz
|
|
Drill Rod
|
T38-H35-R32-4305mm
|
|
Hole Depth
|
4000mm
|
|
Diesel Engine
|
Yuchai 66kw
|
|
Main Electric Motor
|
55kw
|
|
Total Installed Power
|
62kw
|
|
|
|

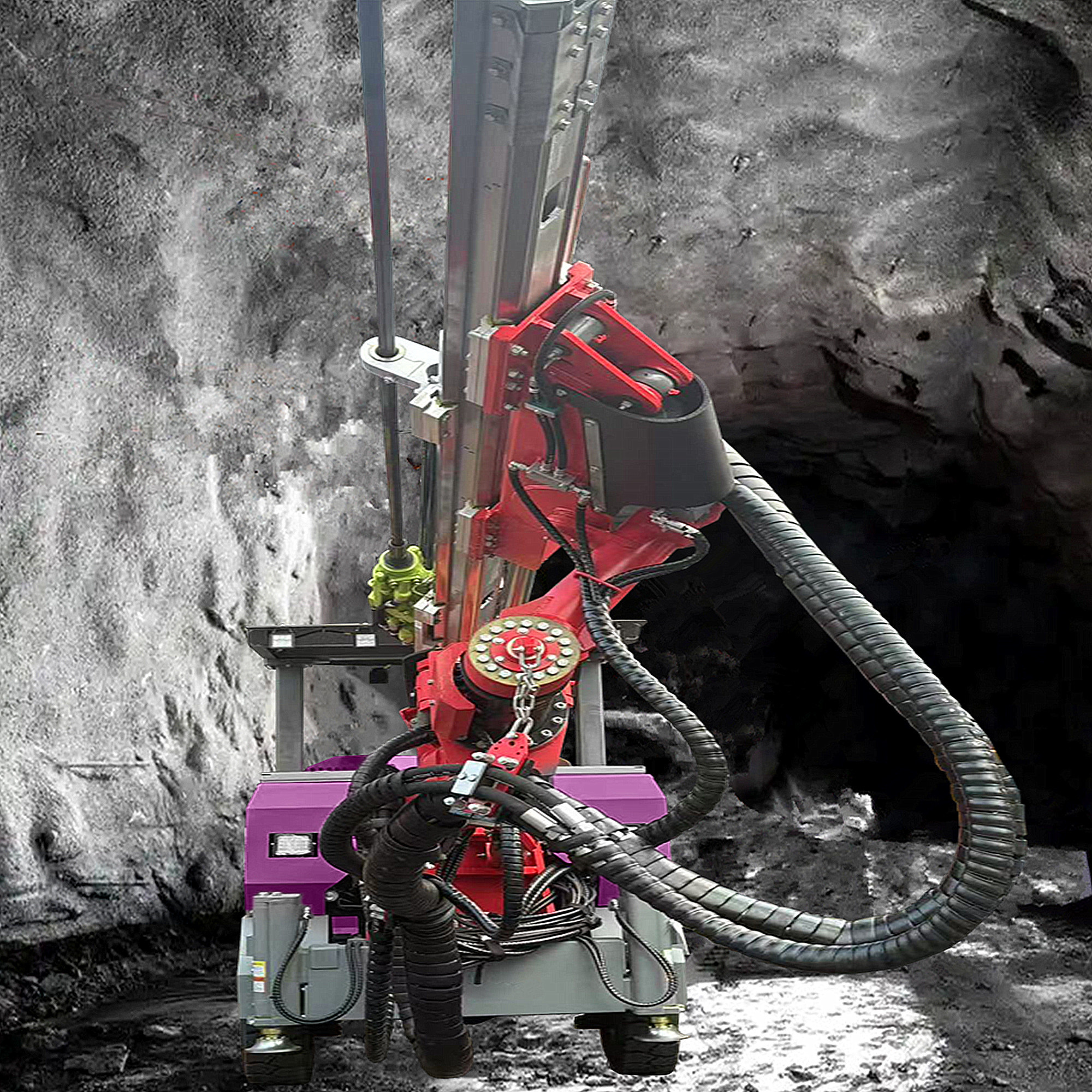

Rock drill
|
|
|
Shank
|
T38
|
|
Drill range
|
41mm-76mm
|
|
Reaming range
|
76mm-4127mm
|
|
Height over drill centre
|
95mm
|
|
Length without shank
|
1008mm
|
|
Impact power
|
18kW
|
|
Impact rate
|
60Hz
|
|
Rated hydraulic pressure
|
210bar
|
|
Maximum hydraulic pressure
|
230bar
|
|
Rotation system
|
Separate rotation
|
|
Rotation speed
|
0~215rpm
|
|
Rotation torque
|
max 1000Nm
|
|
|
