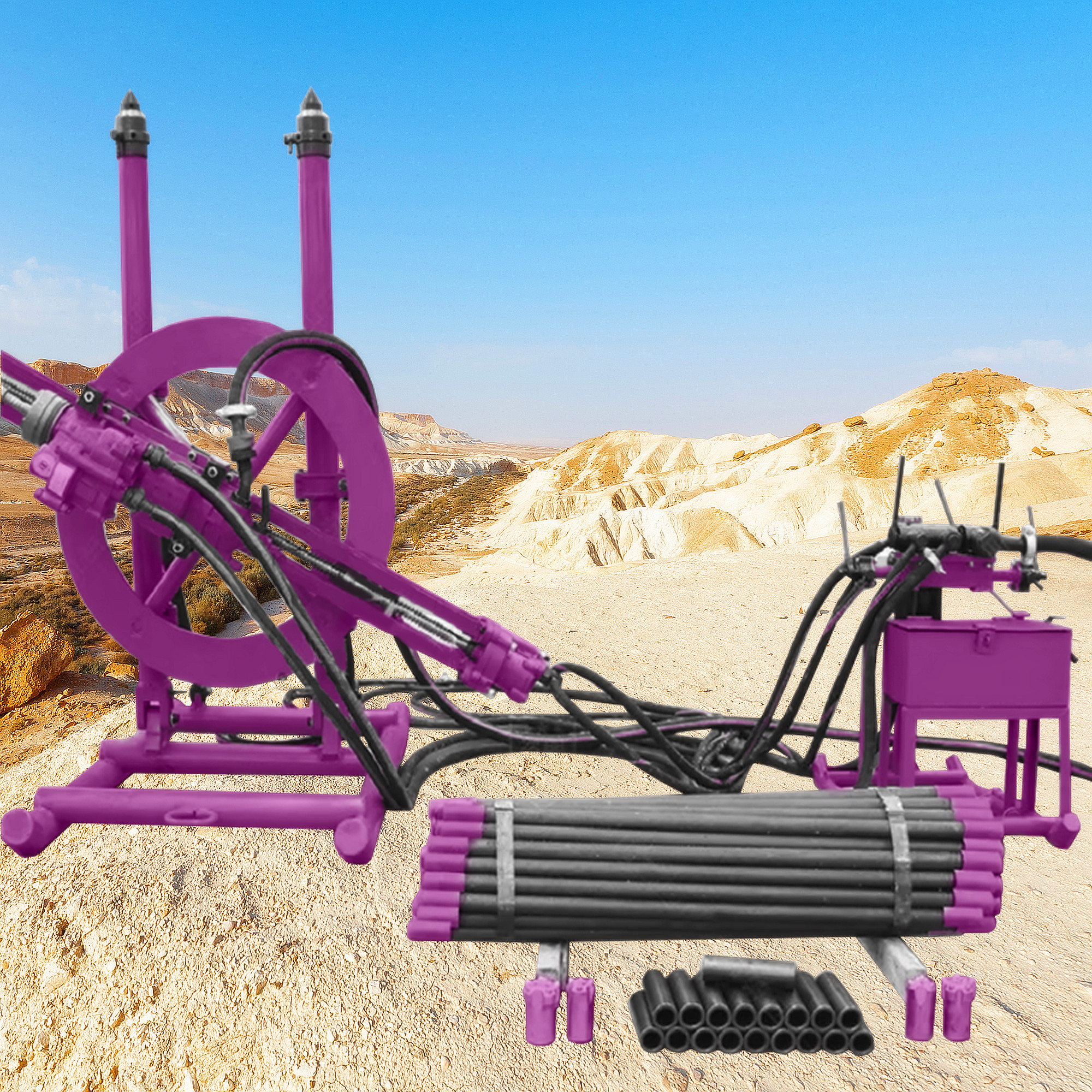

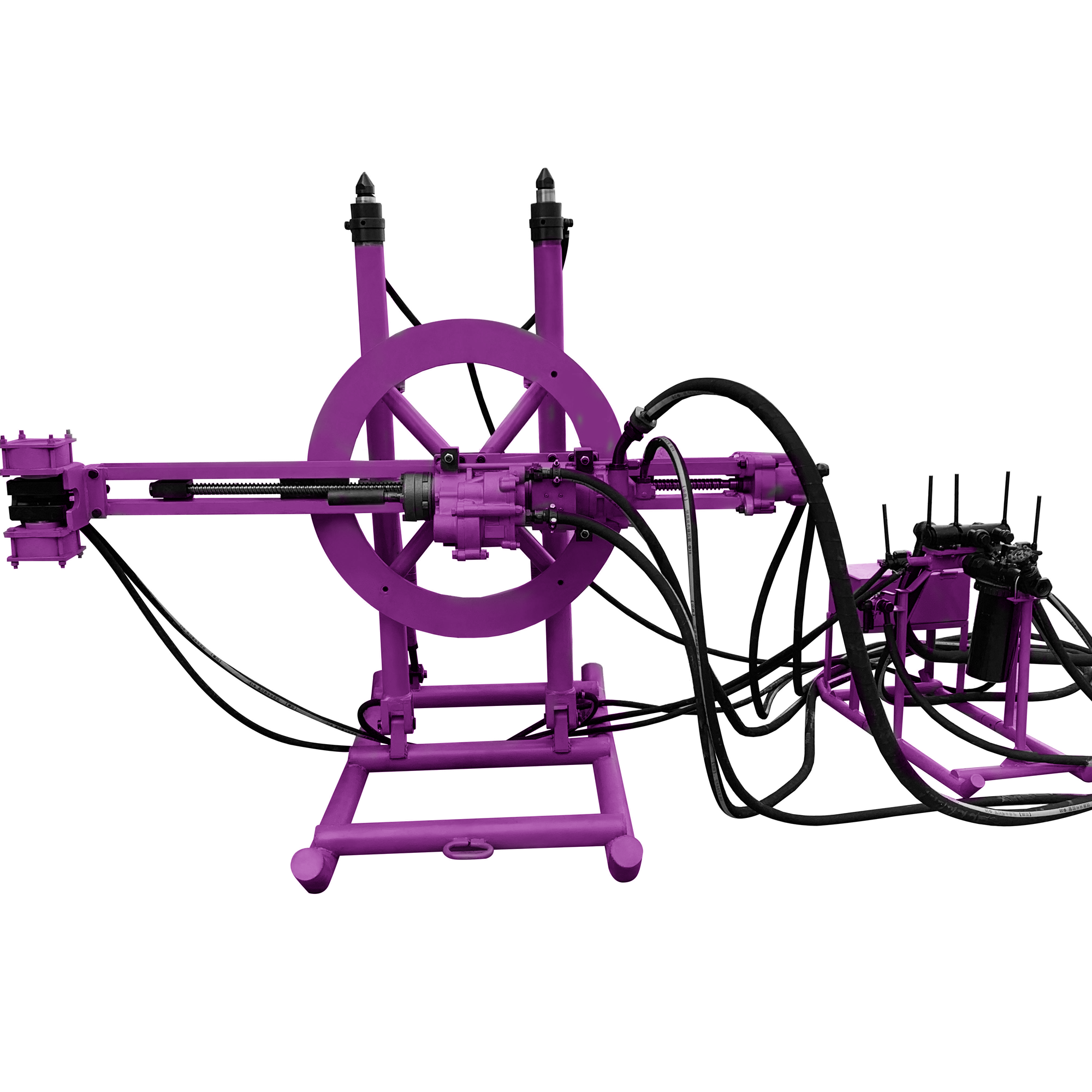

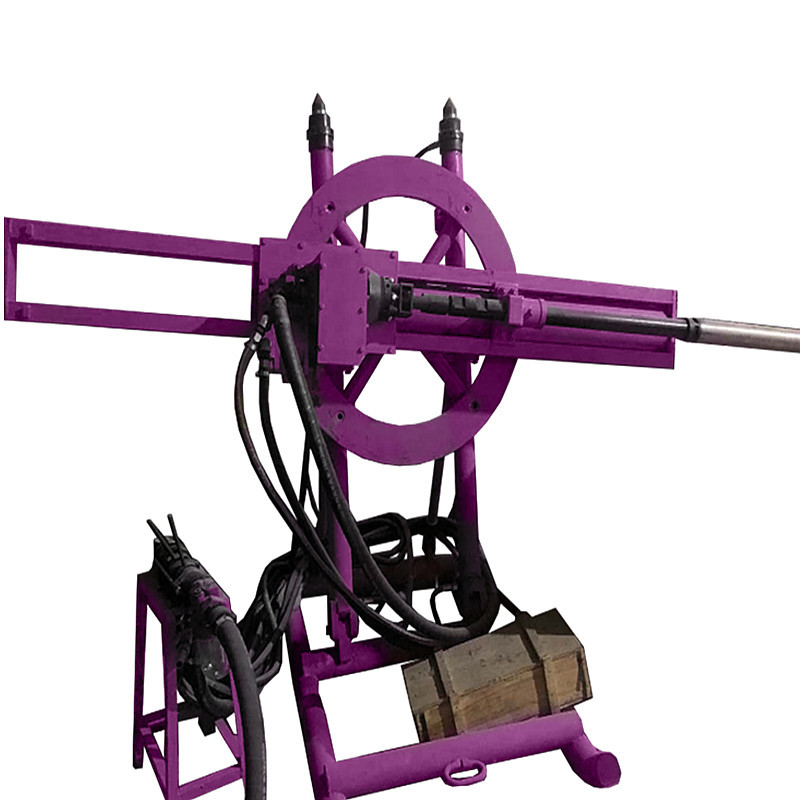

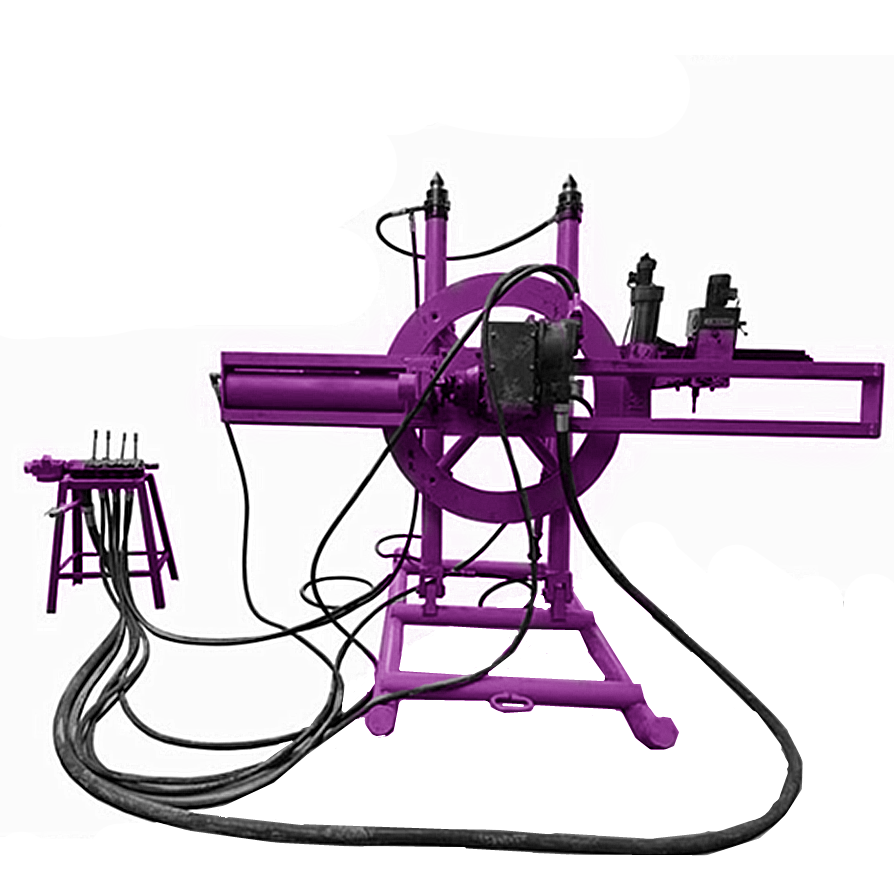

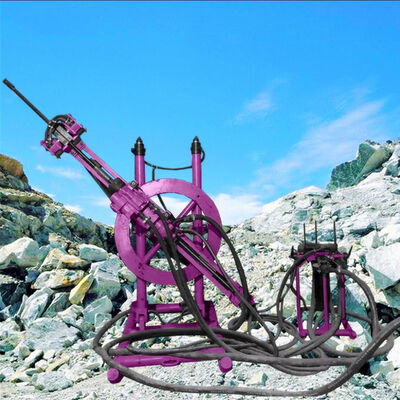

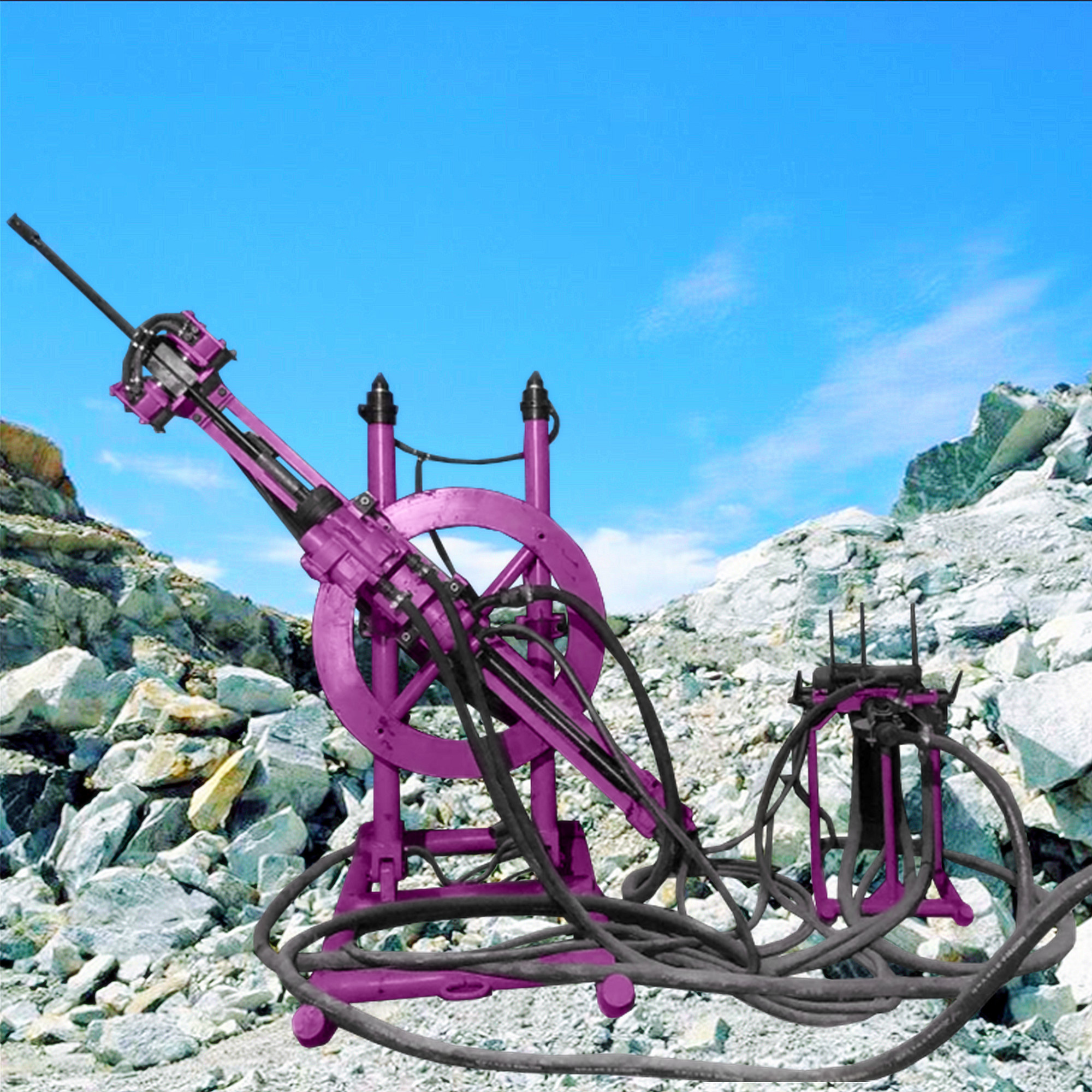

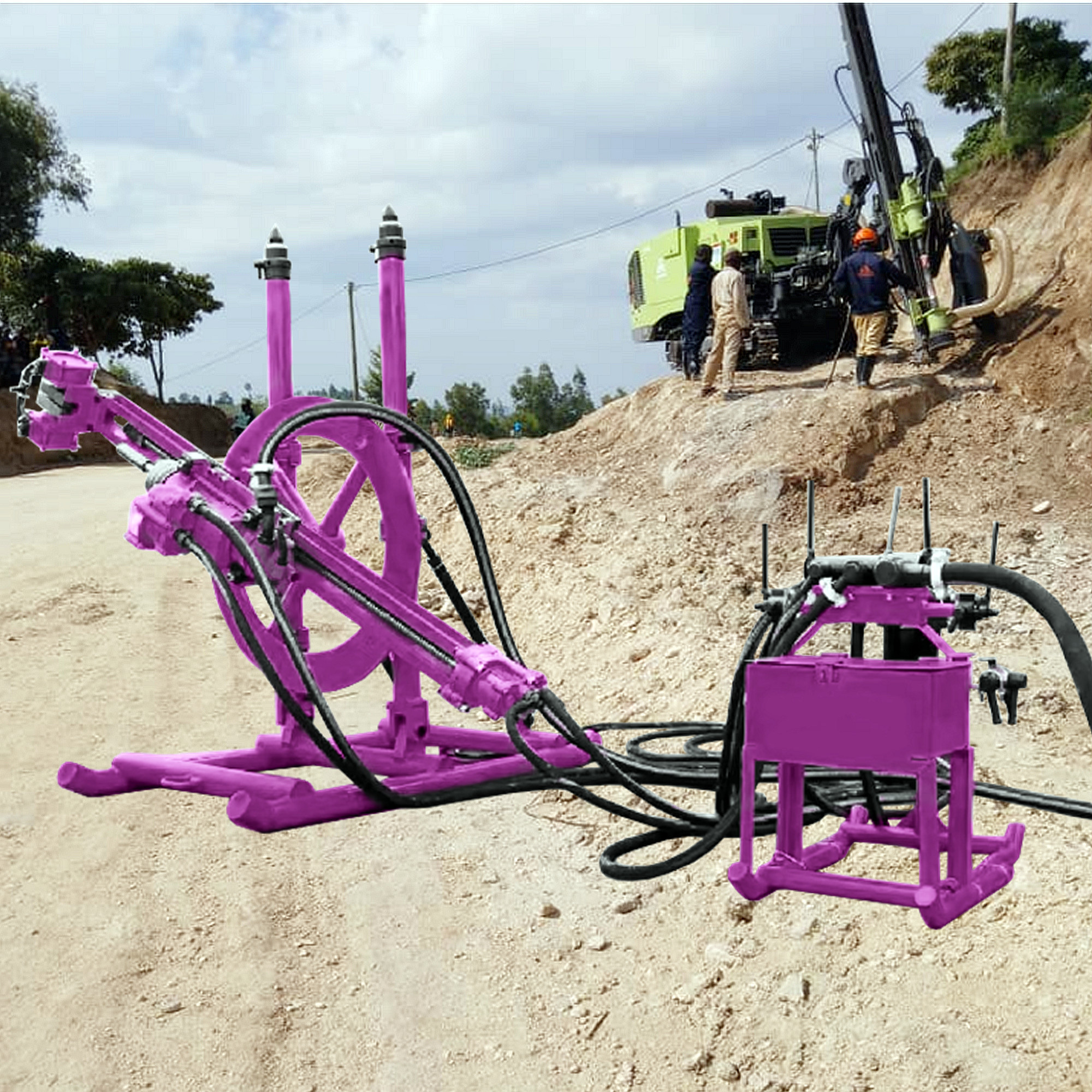

This advanced drilling system integrates a robust disc-type platform with full 360° continuous
rotation capability, enabling omnidirectional drilling operations without equipment repositioning.
The rotating disc mechanism, combined with a heavy-duty DTH (Down-The-Hole) hammer andautomatic feed system, delivers exceptional drilling efficiency in granite, basalt, and other hard
rock formations (Φ50-80mm). Its unique rotation-lock synchronization technology ensures drilling
precision (±1° deviation) while maintaining stability during high-torque operations.
Ideal for confined-space drilling in mining shafts, slope anchoring projects, and tunnel construction,
this rig achieves 35% faster cycle times compared to conventional models through its seamless 360°
angle transition and real-time drilling parameter auto-correction functions.
The sizes of different models of turntables are suitable for 2.2mx2.2m-2.7mx2.7m / 2.5mx2.5m-3.0mx3.0m
Products Description
|
Type
|
Rotary Drilling Rig
|
|
Product name
|
Drilling Rig
|
|
Applicable
|
Building Energy ,Mining,borehole drilling rig
|
|
|
Parameters
|
Model SR90
|
Model SR150
|
|
Drilling Hole Diameter
|
50-80mm
|
80-140mm
|
|
Max. Drilling Hole Depth
|
35m
|
180m
|
|
Shank Model
|
φ38mmx90mm
|
|
|
Impact Force
|
≥225J
|
15000N
|
|
Impact Frequency
|
≥34HZ
|
60rpm
|
|
Output Torque of Drill Rod
|
≥140NM
|
1500-2000NM
|
|
Workable Tunnel Dimensions
|
2.2m x 2.2m - 3.0m x 3.0m
|
2.2m x 2.2m - 3.0m x 3.0m
|
|
Total Air Consumption
|
≤225L/s
|
120-350L/s
|
|
Drilling Angles
|
0-360 degrees
|
0-360 degrees
|
|
Mounted
|
No (Man Portable)
|
Two Wheels Trailer
|
|
Weight for Rocks Drilling Machine
|
95KG
|
450KG
|
|
Dimensions for Rocks Drilling Machine
|
890x360x305mm
|
|
