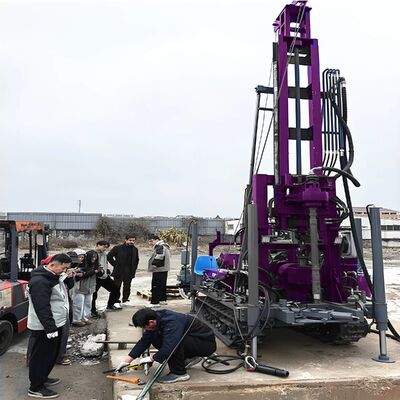

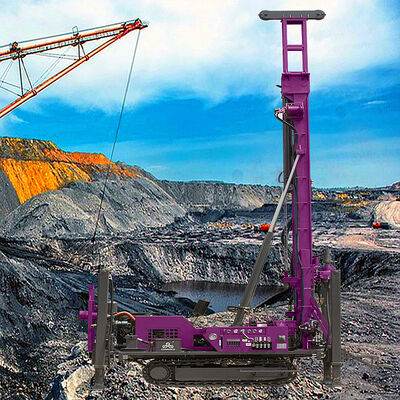

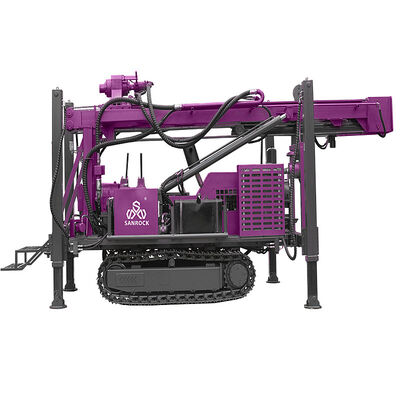

Hydraulic Core Drilling Rig Portable Diamond Drilling Rig Gold Mining Core Drilling Machine

A core drilling rig designed for gold exploration at depths of up to 500 meters is a specialized piece of equipment essential for extracting continuous, undisturbed core samples from subsurface geological formations. These rigs are engineered to penetrate hard rock strata commonly associated with gold-bearing ore bodies, such as quartz veins, shear zones, and metamorphic complexes. Utilizing diamond-impregnated core barrels and advanced hydraulic systems, the rig ensures precise, clean sample retrieval with minimal core loss or contamination—critical for accurate assay analysis and mineral identification. The 500-meter depth capability allows access to intermediate-depth deposits, enabling geologists to evaluate gold grade, structural controls, and ore body geometry without extensive surface disruption. Key features include modular design for mobility in remote terrains (e.g., mountainous regions or dense forests), automated drill rod handling to reduce manual labor, and real-time data logging of drilling parameters like torque, penetration rate, and lithology changes. This technology supports sustainable exploration by minimizing environmental impact through targeted drilling and efficient resource use, ultimately aiding in the discovery and development of economically viable gold reserves.

Model SRC500M Drilling capacity Drilling depth for water well 350m(75mm~220mm) Wireline coring NQ size 500m Borehole (Drill bit) dia. Ø75～Ø350mm Drilling angle 90° Drive head Lifting capacity 120kN Thrusting capacity 85KN Rotary speed RPM Turning right:27-901r/min Turning left:48-219 r/min Max. Torque 10500N.m Power Unit Engine Model YN27 Rated power/speed 58kW/ 2400r/min Mechanical winch capacity 5.5Ton Drill pipe Drill pipe diameter Ø50/ Ø60 / Ø76/ Ø89mm NQ/ HQ /PQ Drill pipe length 3000mm Mud pump BW160/ BW200/ BW250/BW320/BW450 Crawler chassis Walking speed 0-2 km/h Climbing angle Max. 25-30° Dimension Transport 5600*2100*2600mm Working 3800*2400*7600mm Weight with steel crawler 6500kg
