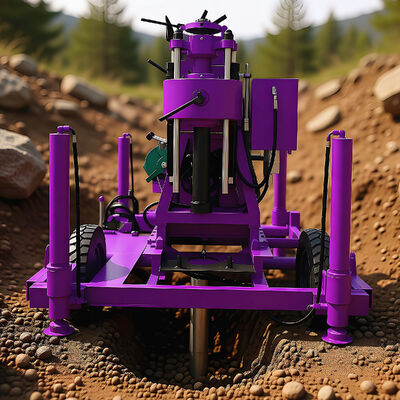

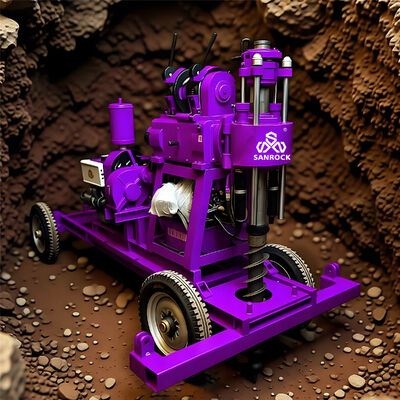

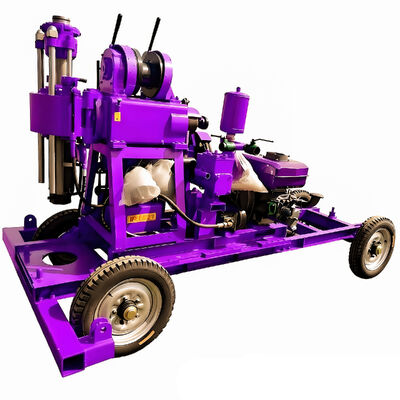

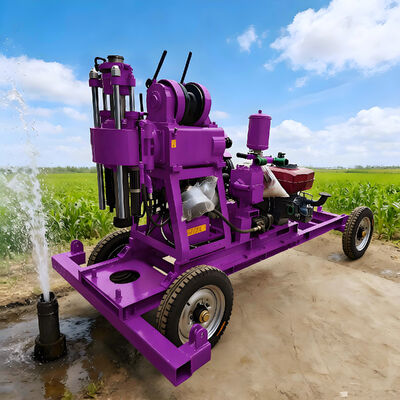

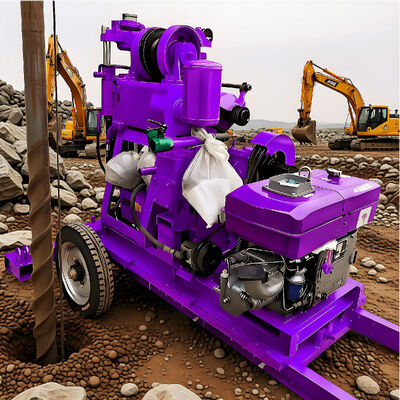

Hydraulic Core Drilling Rig Rotary Borehole Drilling Equipment Geological Core Drilling Rig Machine

1set/sets per maand
MOQ
negotiable
Prijs
Hydraulic Core Drilling Rig Rotary Borehole Drilling Equipment Geological Core Drilling Rig Machine
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Productnaam: hydraulische boorinstallatie voor kernboren
Naam: Boorplatform voor boorgaten, kernboorplatform
type: Kernboormachine
Gebruik: waterput.kernmonster
Functie: Hoog boorefficiëntie, draagbaar, lichtgewicht
Sollicitatie: Geologische Exploratie
Stroom: 16.2kw
Nominale snelheid: 2200r/min
Boordiameter: 75325mm
Boordiepte: 200m
De diameter van de boorstaaf: 42-60 mm
Afmeting (l*b*h): 2700*900*1500 mm
Service na verkoop verleend: Online-ondersteuning
Maximaal hefgewicht van verticale as: 25KN
Maximale voedingsdruk van verticale as:: 15kn
Maximaal uitgangskoppel van verticale as: 15kn
Verticaal astoerental (4e versnelling): 71.142.310.620 tpm
Verticale asbeweging: Volledige kleur
Gatendiphoek: 90-75°
Eindgatdiameter: 75 mm
Enkele pakketgrootte: 2150×880×1560 mm
Enkel brutogewicht: 760 kg
Markeren:

hydraulic core drilling rig machine

,

rotary borehole drilling equipment

,

geological core drilling rig
Basis informatie
Plaats van herkomst: Zhejiang, China
Merknaam: SANROCK
Certificering: CE ISO 9001:2015
Modelnummer: SRC200
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: Naaktpakket voor machines, houten kistpakket voor reserveonderdelen, of vraag van de klant.
Levertijd: 15-25 dagen
Betalingscondities: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Levering vermogen: 5000set/sets per maand
Productomschrijving

Hydraulic Core Drilling Rig Rotary Borehole Drilling Equipment Geological Core Drilling Rig Machine 0

Hydraulic Core Drilling Rig Rotary Borehole Drilling Equipment Geological Core Drilling Rig Machine 1

Hydraulic Exploration Geological Core Drilling Rig – 200m Depth
This hydraulic-powered exploration core drilling rig is specifically engineered for geological survey, mineral prospecting, and geotechnical investigation, with a maximum drilling depth of 200 meters. The fully hydraulic drive system delivers smooth and precise control over rotation speed, feed pressure, and rod handling, ensuring efficient coring in diverse formations including rock, soil, and weathered strata.
Key features include:
High-torque hydraulic rotary head for reliable diamond core drilling (NQ, HQ, BQ).
Hydraulic feed and retraction for accurate bit pressure control and reduced rod wear
Compact and modular design for easy transport and setup in remote or confined sites.
Durable construction suited for continuous operation in tough field conditions.

Hydraulic Core Drilling Rig Rotary Borehole Drilling Equipment Geological Core Drilling Rig Machine 2

Hydraulic Core Drilling Rig Rotary Borehole Drilling Equipment Geological Core Drilling Rig Machine 3

Hydraulic Core Drilling Rig Rotary Borehole Drilling Equipment Geological Core Drilling Rig Machine 4

Hydraulic Core Drilling Rig Rotary Borehole Drilling Equipment Geological Core Drilling Rig Machine 5

Hydraulic Core Drilling Rig Rotary Borehole Drilling Equipment Geological Core Drilling Rig Machine 6

Hydraulic Core Drilling Rig Rotary Borehole Drilling Equipment Geological Core Drilling Rig Machine 7

Hydraulic Core Drilling Rig Rotary Borehole Drilling Equipment Geological Core Drilling Rig Machine 8

Hydraulic Core Drilling Rig Rotary Borehole Drilling Equipment Geological Core Drilling Rig Machine 9

Products Description

Brand Name:SANROCK
Product name :Core Drilling Rig

Name: Core Drilling Machine
Power Type :Diesel

Feature :High Drilling Efficiency,portable,Light Weight
Packaging Details:packing according to customer's requirement.

Model number:Diesel engine
Rated speed:2200r/min
Power:16.2KW
Borehole depth:200M
Pipe diameter:50mm
Opening diameter:75-325mm
Final hole diameter:75mm
Hole dip Angle:90-75°
Gyrator
Vertical shaft speed(4th gear):71,142,310,620 r/min
Vertical shaft travel:450mm
Maximum output torque of vertical shaft:15KN
Maximum feed pressure of vertical shaft:15KN
Maximum lifting weight of vertical shaft:25KN
Single package size:2150×880×1560 mm
Single gross weight:760 kg

Hydraulic Core Drilling Rig Rotary Borehole Drilling Equipment Geological Core Drilling Rig Machine 10

Hydraulic Core Drilling Rig Rotary Borehole Drilling Equipment Geological Core Drilling Rig Machine 11

Hydraulic Core Drilling Rig Rotary Borehole Drilling Equipment Geological Core Drilling Rig Machine 12

Hydraulic Core Drilling Rig Rotary Borehole Drilling Equipment Geological Core Drilling Rig Machine 13

Hydraulic Core Drilling Rig Rotary Borehole Drilling Equipment Geological Core Drilling Rig Machine 14

Hydraulic Core Drilling Rig Rotary Borehole Drilling Equipment Geological Core Drilling Rig Machine 15

Hydraulic Core Drilling Rig Rotary Borehole Drilling Equipment Geological Core Drilling Rig Machine 16

Hydraulic Core Drilling Rig Rotary Borehole Drilling Equipment Geological Core Drilling Rig Machine 17
