HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine

1set/sets per maand
MOQ
negotiable
Prijs
HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Service na verkoop verleend: Videotechnische ondersteuning
Type: Kernboormachine
Stroom: Diesel
Boordiepte: 600m
Boordiameter: 75-300 mm
Boor pijp: Φ60
Boren helling: 90° - 65°
De verticale as door:sturen snelheid: 32-1057r/min
De verticale snelheid van de asomkering: 29-137r/min
Verticale asreis: 600 mm
Diameter verticale asboring: 96 mm
Verticale as om het vermogen te verbeteren: 60kN
Kies kabel uit om capaciteit te verbeteren: 200 mm
gewicht: 3600KG: 3600 kg
Afmetingen: 2900×2560×3300mm
Markeren:

hydraulic core drilling rig

,

portable core drilling machine

,

copper exploration drilling equipment
Basis informatie
Plaats van herkomst: Zhejiang, China
Merknaam: SANROCK
Certificering: CE ISO 9001:2015
Modelnummer: XYX-3
Document: Core Drilling Rig.pdf
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: Naaktpakket voor machines, houten kistpakket voor reserveonderdelen, of vraag van de klant.
Levertijd: 15-25 dagen
Betalingscondities: L/C, T/T, Western Union, D/P, D/A
Levering vermogen: 3000Set/reeksen per maand
Productomschrijving

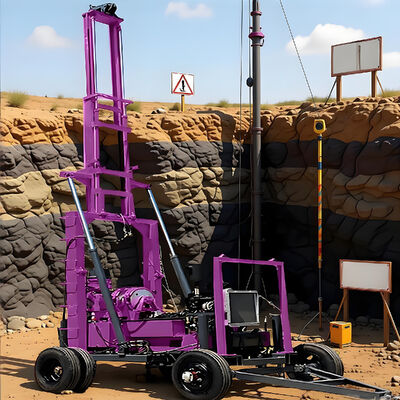

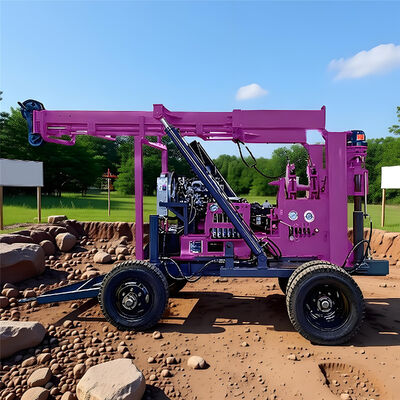

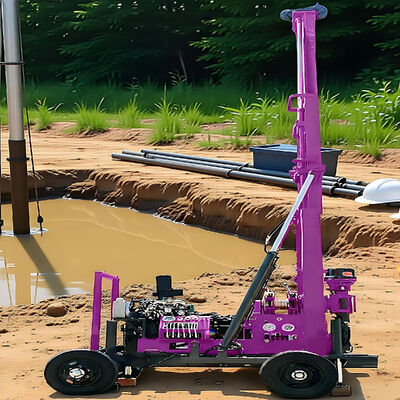

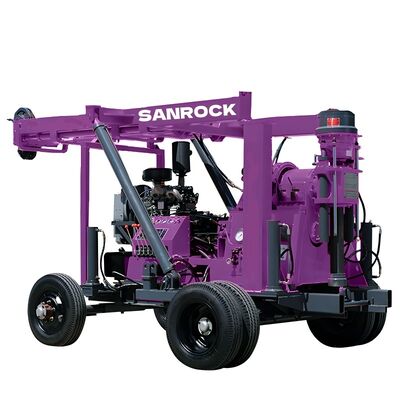

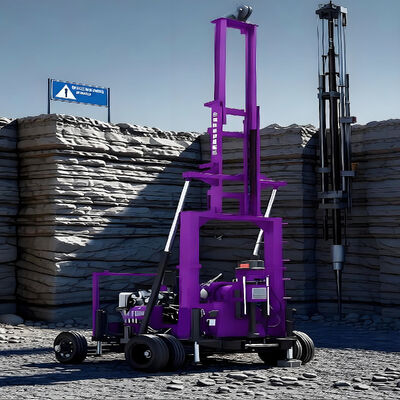

The SANROCK XYX-3 Copper Exploration Core Drilling Rig is engineered for copper mining exploration and base metal prospecting. This full hydraulic diamond core drill machine delivers 600 meters of drilling depth with a open hole diameter range of 75-325mm, making it ideal for copper porphyry deposit delineation and resource definition drilling.
The XYX-3's spindle-type hydraulic system provides smooth, vibration-free rotation that maximizes core recovery in soft to medium-hard copper-bearing formations. The diamond core drilling capability ensures pristine rock core samples for accurate copper grade assay and geological interpretation.
Key Specifications for Copper Exploration:
●Drilling Depth: 100m-600m (covers shallow oxide to deep sulfide zones)
●Power: 35-42KW diesel engine
●Core Barrel: NQ/HQ/PQ compatible
●Mud Pump: High-capacity for deep hole flushing
●Transport: 6-wheel trailer, highway-towable
Application Scenarios: Copper porphyry deposit drilling / VMS copper-zinc exploration / sediment-hosted copper / IOCG deposits / copper grade control / mine expansion drilling.

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 0

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 1

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 2

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 3

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 4

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 5

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 6

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 7


HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 8

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 9

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 10

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 11

Product Description

Type:Core Drilling Rig
Power Type:Diesel
Drilling depth:600m
Drilling diameter:75-300mm
Open hole diameter:300mm
Final hole diameter:75mm
Drill pipe:Φ60
Drilling inclination:90°--65°
Vertical axis forward speed:32-1057r/min
Vertical axis reversal speed:29-137r/min
Vertical axis travel:600mm
Vertical shaft bore diameter:96mm
Vertical axis to enhance ability:60kN
Single rope to enhance speed:0.5-1.9m/s
Rope diameter:12.5mm
Single rope to enhance ability:30kN
Reel diameter:300mm
Reel capacity:65m
Mud pump (optional)
Horizontal three-cylinder BW-250 mud pump
Displacement:250L/min
Work pressure:80kgcm2
Intake pipe diameter:76mm
Outlet diameter:51mm
Double gear pump:CBF-F63/25
Pre-flow pressure:63L/min 20Mpa
Post-flow pressure:25L/min 20Mpa
Diesel engine:CloudYN27/power 42kw / 2400rpm
Motor:Y180L-4/22kW/1470rpm
Rig weight:3600KG
Dimensions:2900×2560×3300mm

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 12

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 13

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 14

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 15

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 1

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 17

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 18

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 19

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 20

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 21

Company Information

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 22

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 23

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 24

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 25

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 26

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 27

Certificate

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 28

HQ NQ PQ Hydraulic Core Drilling Rig Equipment Copper Exploration Portable Core Drilling Rig Machine 29

1.Do you provide design drawing and customization services for complete machines and drilling tools?
Please provide your technical specifications or project background details, and we are ready to develop a customized proposal based on your requirements.
This includes 2D and 3D design drawings , delivered in various formats including DWG, PDF, STEP, and IGES.
Our engineering team specializes in developing tailored solutions that meet your specific operational requirements, geological conditions, and performance objectives.

2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.

3.How is the shipment?   How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping.   Shipping efficiency depends on country and city you want to ship to.   For small and delicate products, we ship by DHL, UPS, Fedex or TNT.  You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC.  There will be strict inspection and testing for every order before shipping out.
