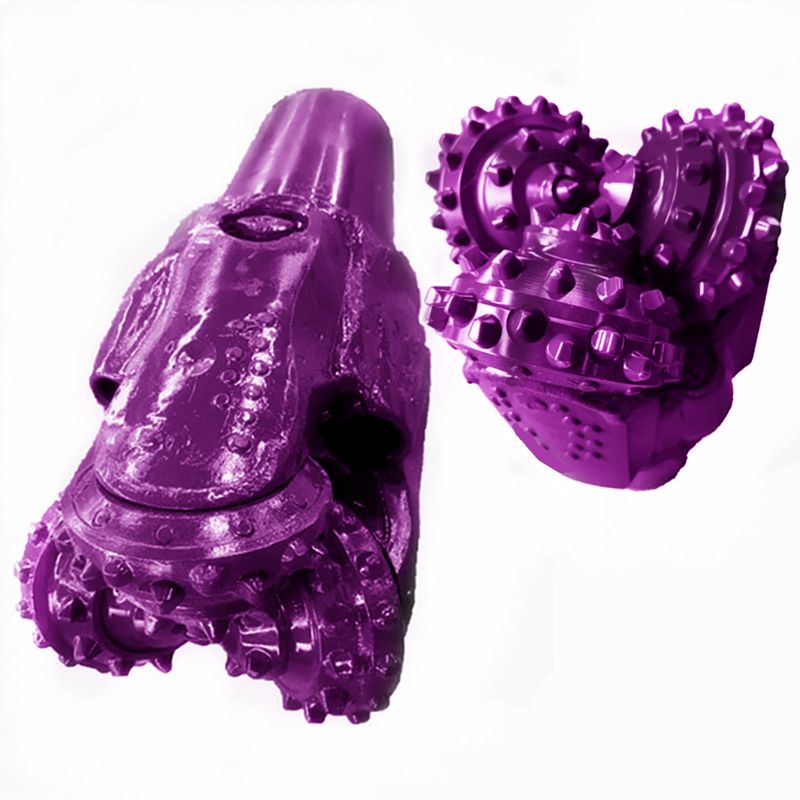

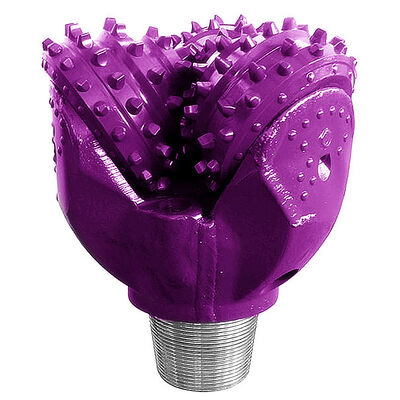

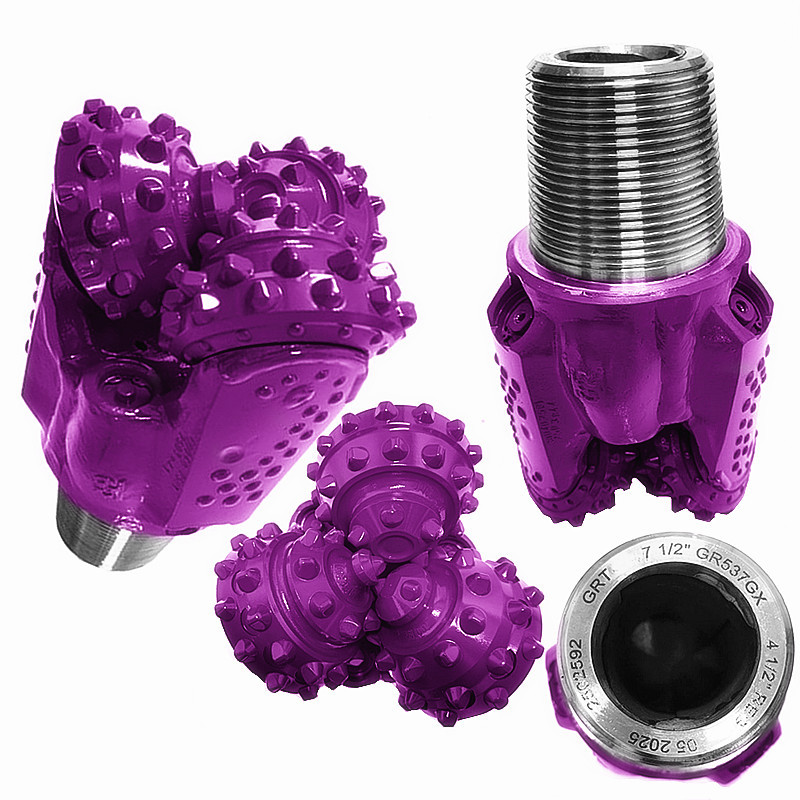

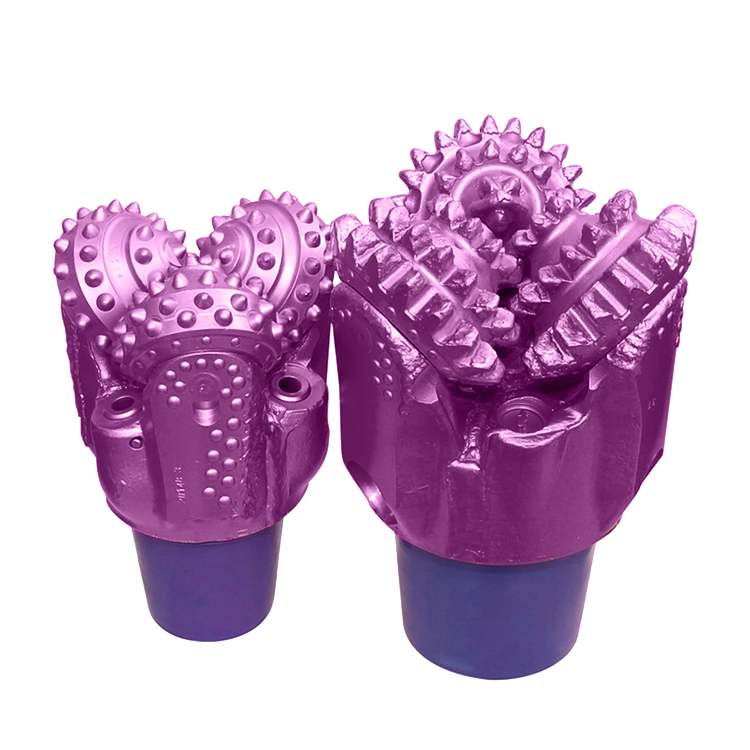

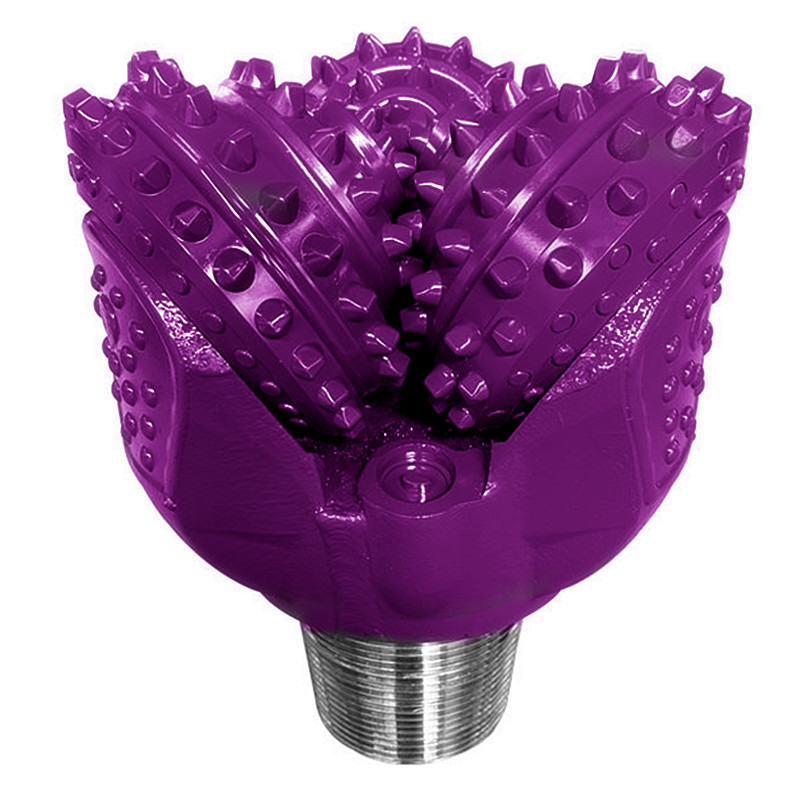

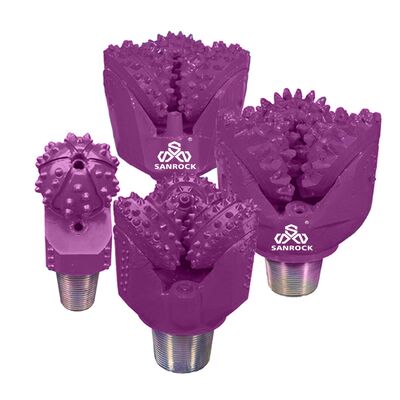

SANROCK Tricone Rock Bit Gas Geothermy Drilling Tools Roller Cone Button Drilling Bit

Specially engineered for natural gas and geothermal applications, roller cone drill bits

deliver superior performance in extreme temperature and abrasive environments.

Their robust tri-cone design incorporates thermal-stable bearings and corrosion-resistant

alloys, ensuring reliable operation in high-temperature geothermal reservoirs (up to 300°C+)and acidic gas-bearing formations. Tungsten carbide inserts or diamond-enhanced teeth provideexceptional wear resistance when penetrating hard volcanic rock, granitic basement, or silica-rich

strata typical in geothermal systems. Optimized cone offsets enhance cuttings removal efficiency

in porous shale and fractured gas reservoirs, while pressure-compensated lubrication systems

maintain smooth rotation under fluctuating downhole pressures.

The bits' adaptable tooth geometry allows seamless transitions between soft sedimentary layersand compact metamorphic zones, critical for hybrid gas/geothermal wells.

Enhanced seal technology prevents fluid intrusion in steam-dominated environments, prolonging

service life and reducing non-productive time. Their cost-effective durability and predictable

performance make them ideal for minimizing operational risks and maximizing ROI in challenging

energy exploration projects.

Products Description

Notes for the use of roller cone bits:
1 .Before the drill bit is down, it is necessary to confirm that the bottom of the well is clean, free of grit, and no metal falling.
2. Check if the thread connection screw of the roller cone bit is intact and the nozzle is installed properly.
3. Run in hole needs to be stable, avoid stress and prevent drilling.
4. The last joint needs a large displacement to start the rotary table and keep reaming to bottom of the well., fully wash the well to prevent the debris from clogging the nozzle.
5. The shape of the bottom hole should be lightly pressed and slowly turned into contact with the bottom of the well, smalldrilling pressure, low speed, large displacement, small torque, and the speed is 40~60 rev / min, at least 30 minutes.
6. Determine the weight on bit and speed in combination with the actual conditions of the formation.
7. During drilling ahead, the operation should be smooth, drill feeding should be uniform, it is strictly forbidden to lift and release the drill sharply,drill string not well braked and drill string free fall.
8. If it is found that the drill bit stops making progress, the pump pressure increases and decreases obviously, the rate of penetration is suddenly decreased, and the torque is increased, lift the drill to check without delay.
