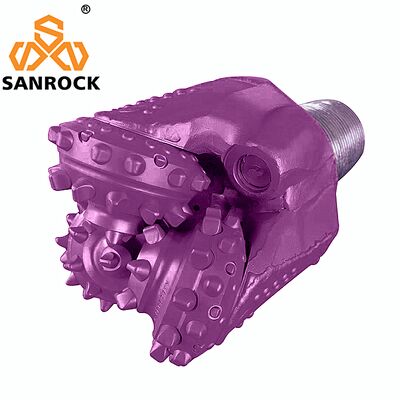

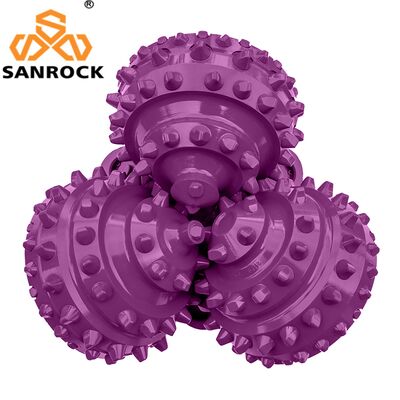

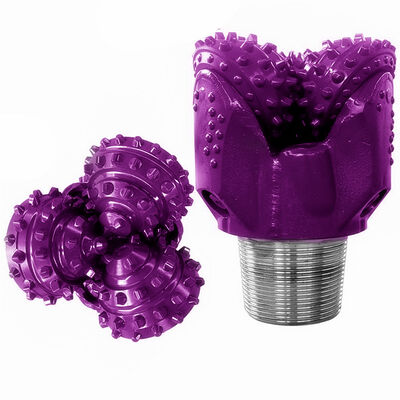

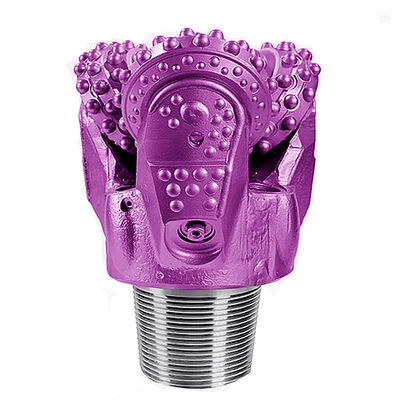

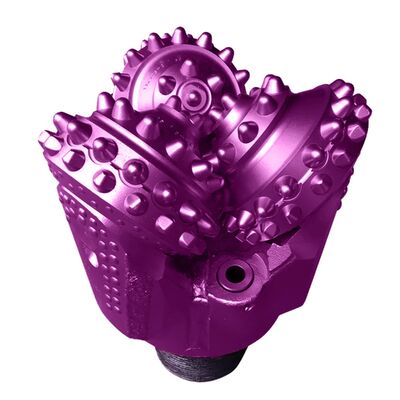

3 1/2 API Reg 4 1/2 API Reg Thread Tricone Rock Bit Oil Gas Water Drill Tool Tricone Bit

Roller bits for Mining and Rock Drilling

The strength and wear resistance of inserts are improve by using carbide inserts

with high strength and high wear resistance. Surface of the high precision bearing

heat treated by using advanced heat treatment process to improve the load capacity

and service life of the bearing. The service life of the bearing is further extended by

adopting harder and mort wear resistant material for thrust bearing.

Preventing reflux structure has dual function, it can avoid air counterflow and dust

entering into bearing when the air-compressor stop working accidentally, and separate

air and water in order to avoid water entering into bearing when it works normally toprolong the life of bearing.

Roller bits for Oil Drilling

1. This series tricone bit use Sealed roller bearing structure. With rollers arranged in

grooves recessed in the cone body, the size of the bearing journal is increased.

2. Thrust bearing surfaces are hardfaced and treated with friction reducing technology.

3. Ball locked cone, suitable for high rotary speed.

Products Description

Notes for the use of roller cone bits:
1 .Before the drill bit is down, it is necessary to confirm that the bottom of the well is clean, free of grit, and no metal falling.
2. Check if the thread connection screw of the roller cone bit is intact and the nozzle is installed properly.
3. Run in hole needs to be stable, avoid stress and prevent drilling.
4. The last joint needs a large displacement to start the rotary table and keep reaming to bottom of the well., fully wash the well to prevent the debris from clogging the nozzle.
5. The shape of the bottom hole should be lightly pressed and slowly turned into contact with the bottom of the well, smalldrilling pressure, low speed, large displacement, small torque, and the speed is 40~60 rev / min, at least 30 minutes.
6. Determine the weight on bit and speed in combination with the actual conditions of the formation.
7. During drilling ahead, the operation should be smooth, drill feeding should be uniform, it is strictly forbidden to lift and release the drill sharply,drill string not well braked and drill string free fall.
8. If it is found that the drill bit stops making progress, the pump pressure increases and decreases obviously, the rate of penetration is suddenly decreased, and the torque is increased, lift the drill to check without delay.
