Thuis /Producten/DTH-Boringsmachine/Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig

Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig

1 set/sets
MOQ
negotiable
Prijs
Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Productnaam: Crawler-boorapparaat
Vermogen (W): 3.7kw
Vermogenstype: Diesel
Boordiepte: 30 m
Boringdiameter: 90-254mm
Toepassing: Mijnbouw, steengroeve, het gat van de boringsontploffing, mijnbouw en bouw
Luchtverbruik: 15-25 m3/min
Werkdruk: 2.5mpa
Rotatiesnelheid: 70rpm
Reissnelheid: 3.5Km/h
Functie: Hoge Boringsefficiency, Concurrerende Prijs
afmeting (l*w*h): 6100*2200*2105mm
Gewicht: 5400 kg
Type: roterende boormachine
Markeren:

DTH Mining Drilling Rig

,

DTH Drilling Rig Surface Blast hole

,

Pneumatic Mining DTH Drilling Rig
Basis informatie
Plaats van herkomst: Zhejiang, China
Merknaam: Sanrock
Certificering: CE ISO 9001:2015
Modelnummer: SPC300D aangepast
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: Naakte verpakking voor boorplatform; houten verpakking voor reserveonderdelen; of op vraag van de kl
Levertijd: 18-25 werkdagen
Betalingscondities: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Levering vermogen: 3000 sets per maand
Productomschrijving

Through disruptive operation experiments and field tests under various geological conditions, multiple mechanical flaws have been refined and resolved, overcoming three critical technical challenges ("high failure rates, excessive air consumption, and elevated operational costs") of split-type pneumatic drilling rigs. This resulted in an easily operable split-type pneumatic drilling rig characterized by "two lows and one high": low maintenance costs, low air-pressure requirements, and high drilling efficiency.

Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig 0

Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig 1

Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig 2

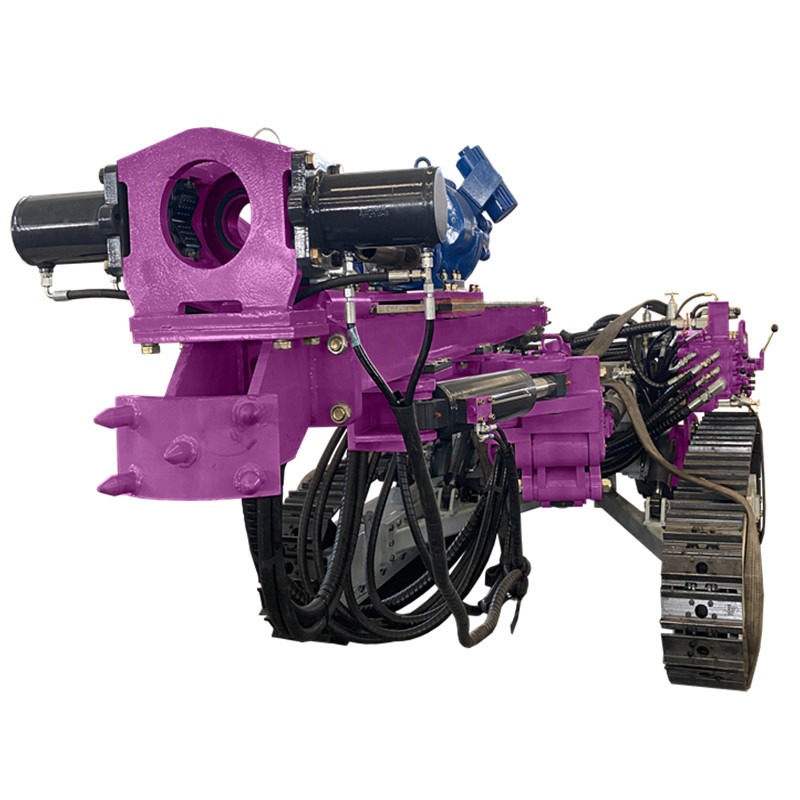

Rotation Reducer:Optimized internal structure for simplified maintenance. Enhanced shock absorbers for reduced drilling impact reaction forces. Gear-type rotary motor with rapid speed, high starting torque, quick start/stop response, and overload protection. Minimal temperature rise during prolonged operation.

Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig 3Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig 4



Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig 5Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig 6

Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig 7

Products Description
Product name
Drilling Rig
Model
SPC300D
SPC300T
Dimension
6100*2200*2105mm
5777*2210*1942mm
Min.Ground Clearance
250 mm
250mm
Weight
5400 kg
5400kg
Travel Speed
0-3.5 km/h
0-3.5km/h
Travel Motor Power
8.8 kW x2
8.8 kW x2
Gradeability
35°
35°
Swing Angle
13°
13°
Rotary Head Power
3.7kw
3.8kw
Rotary Torque
2000 Nm (at 0.7 MPa)
365N.m
Max.Rotary Speed
70rpm
380rpm
Air Consumption
1.73 m³/min at 0.3Mpa
16m³/min at 0.55Mpa
Max.Air Pressure
2.5MPa
1.0Mpa
Air Quantity
15-25 m3/min
15-25m³/min
Drill rod
φ76,φ89 X3000 mm
T38, T45*3050/3660mm
Hydraulic tank capacity
18L
55L
Feed stroke
3980 mm
3980mm
Maximum forward thrust
11KN
11KN
Sliding frame swing
left 47°/right 54°
Left 47°/Right 54°
Drill boom tilt
Up 46°/Down 23°
Up 46°/Down 23°
Drill boom swing
Left 40°/Rght 40°
Left 40°/Right 40°




Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig 8Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig 9

Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig 10

Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig 11Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig 12



Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig 13Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig 14
Company Profile
Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig 15
Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig 16


Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig 17
1.What can you buy from us?
Tunneling Jumbo drilling rig ,DTH drilling rig,Automatic drilling rig with rod changing system,rotary drilling rig,pile driver machine, core drilling rig ,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,Tricone bit ,eccentric casing system,DTH hammer,drill rod,spare parts etc.

2.How can I make payment?
A: You can pay directly online on Alibaba with credit card, or TT, Western Union, LC etc.

3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.

4.How is your quality control? A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.

5.Do you have any certificate of authorization?
A: Our machinery is CE certified.
