Rups Pneumatische Boormachine Sterke Voedingsprestaties Mijnbouwboorinstallatie Hydraulische DTH Boorinstallatie Fabrikant

1 Set/sets
MOQ
negotiable
Prijs
Rups Pneumatische Boormachine Sterke Voedingsprestaties Mijnbouwboorinstallatie Hydraulische DTH Boorinstallatie Fabrikant
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Productnaam: Boorinstallatie
Vermogen (w): 3,7 kW
Vermogenstype: Diesel
Boordiepte: 30m
Boordiameter: 90165mm
Sollicitatie: Mijnbouw, steengroeve, boorstootgat, mijnbouw en constructie
Luchtverbruik: 15-25 m3/min
Werkdruk: 2,5 MPa
Roterende snelheid: 70rpm
Reissnelheid: 3,5 km/h
Functie: Hoge boorefficiëntie, concurrerende prijs
Type: DTH boorinstallatie
Lengte van de stuwkracht: 3980mm
Totale lengte van schuifframe: 6100 mm
Lengte boorgiek: 1912 mm
Maximale voortstuwing: 11KN
Werkelijke luchtvolumes: Max.2,5 MPa
Hoeveelheid lucht: 15-25 m3/min
Afmeting (l*b*h): 6100*2200*2105mm
Gewicht: 5400 kg
Markeren:

Rups Pneumatische Boormachine met sterke voeding

,

Mijnbouwboorinstallatie hydraulische DTH

,

DTH Boormachine fabrikant

Basis informatie
Plaats van herkomst: Zhejiang, China
Merknaam: Sanrock
Certificering: CE ISO 9001:2015
Modelnummer: SPC300D aangepast
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: Naaktpakket voor boorinstallatie; Houten pakket voor reserveonderdelen; Of de vraag van de klant;
Levertijd: 18-25 werkdagen
Betalingscondities: L/C, D/A, D/P, T/T, Western Union
Levering vermogen: 3000 reeksen/reeksen per maand
Productomschrijving


Rups Pneumatische Boormachine Sterke Voedingsprestaties Mijnbouwboorinstallatie Hydraulische DTH Boorinstallatie Fabrikant

Rups Pneumatische Boormachine Sterke Voedingsprestaties Mijnbouwboorinstallatie Hydraulische DTH Boorinstallatie Fabrikant

Rups Pneumatische Boormachine Sterke Voedingsprestaties Mijnbouwboorinstallatie Hydraulische DTH Boorinstallatie Fabrikant

Rupsmobiliteit voor uitdagende werklocaties
Met een onderwagen op rupsbanden kan de volledig pneumatische boorinstallatie SPC300D rijden met snelheden tot 3,5 km/u en hellingen tot 35° beklimmen. De rupsplaten van 310 mm breed, een minimale bodemvrijheid van 250 mm en een bedrijfsgewicht van 5.400 kg zorgen voor een stabiel werkplatform tijdens verplaatsingen en boren. Dankzij deze kenmerken kan de machine effectief werken op ruige wegen, steengroevevloeren, bergachtige bouwplaatsen en andere oneffen werkomgevingen waar betrouwbare mobiliteit en stabiliteit van de uitrusting essentieel zijn.
De robuuste pneumatische motor drijft een boorhamermechanisme aan, waardoor een snelle penetratie door hard gesteente, beton en andere harde materialen mogelijk is. De boorinstallatie is voorzien van instelbare voedingsdruk en rotatiesnelheid, waardoor nauwkeurige controle over de boordiepte en diameter mogelijk is. Dankzij het modulaire ontwerp is hij gemakkelijk te transporteren en aan te passen aan verschillende boorconfiguraties, waaronder verticale, horizontale en schuine boorgaten. De corrosiebestendige componenten en ergonomische bedieningselementen zijn gebouwd voor duurzaamheid en zorgen voor betrouwbaarheid en comfort voor de machinist onder zware omstandigheden. De volledig pneumatische boorinstallatie is ideaal voor projecten die mobiliteit, veiligheid en kracht vereisen en levert ongeëvenaarde prestaties op afgelegen of gevaarlijke werklocaties. Rotatiereductiemiddel: Geoptimaliseerde interne structuur voor vereenvoudigd onderhoud. Verbeterde schokdempers voor verminderde reactiekrachten bij boorstoten. Tandwielrotatiemotor met hoge snelheid, hoog startkoppel, snelle start/stop-reactie en overbelastingsbeveiliging. Minimale temperatuurstijging tijdens langdurig gebruik. Gecentraliseerd hydraulisch besturingssysteem: Ergonomisch ontworpen geïntegreerd bedieningspaneel consolideert hydraulische actuatoren en boorsystemen voor geoptimaliseerde efficiëntie. Opvouwbaar afneembaar bedieningspedaal maakt functionaliteit voor één operator mogelijk. Mechanische arm: Nieuwe hydraulische cilinderstructuur met vijf scharnieren vergroot de boorhoeken en het operationele bereik. Verlengd schuifframe gecombineerd met mangaanstalen schuifrails en door meerdere groepen ontworpen schuifplaat is bestand tegen hoog koppel, is bestand tegen vervorming en verlengt de levensduur.

Rups Pneumatische Boormachine Sterke Voedingsprestaties Mijnbouwboorinstallatie Hydraulische DTH Boorinstallatie Fabrikant

Rups Pneumatische Boormachine Sterke Voedingsprestaties Mijnbouwboorinstallatie Hydraulische DTH Boorinstallatie Fabrikant


Rups Pneumatische Boormachine Sterke Voedingsprestaties Mijnbouwboorinstallatie Hydraulische DTH Boorinstallatie Fabrikant

Rups Pneumatische Boormachine Sterke Voedingsprestaties Mijnbouwboorinstallatie Hydraulische DTH Boorinstallatie Fabrikant

Rups Pneumatische Boormachine Sterke Voedingsprestaties Mijnbouwboorinstallatie Hydraulische DTH Boorinstallatie Fabrikant

Rups Pneumatische Boormachine Sterke Voedingsprestaties Mijnbouwboorinstallatie Hydraulische DTH Boorinstallatie Fabrikant

Rups Pneumatische Boormachine Sterke Voedingsprestaties Mijnbouwboorinstallatie Hydraulische DTH Boorinstallatie Fabrikant

Rups Pneumatische Boormachine Sterke Voedingsprestaties Mijnbouwboorinstallatie Hydraulische DTH Boorinstallatie Fabrikant

Rups Pneumatische Boormachine Sterke Voedingsprestaties Mijnbouwboorinstallatie Hydraulische DTH Boorinstallatie Fabrikant


Producten Beschrijving
Productnaam
Booreiland
Model
SPC300D
SPC300T
Dimensie
6100*2200*2105mm
5777*2210*1942mm
Min. bodemvrijheid
250 mm
250 mm
Gewicht
5400 kg
5400 kg
Reissnelheid
0-3,5 km/u
0-3,5 km/u
Reismotorvermogen
8,8 kWx2
8,8 kWx2
Stijgbaarheid
35°
35°
Draaihoek
13°
13°
Roterende kopkracht
3,7 kW
3,8 kW
Roterend koppel
2000 Nm (bij 0,7 MPa)
365Nm
Max. rotatiesnelheid
70 tpm
380 tpm
Luchtverbruik
1,73 m³/min bij 0,3 MPa
16 m³/min bij 0,55 MPa
Max. Luchtdruk
2,5 MPa
1,0 MPa
Luchthoeveelheid
15-25 m3/min
15-25m³/min
Boor staaf
φ76,φ89 X3000 mm
T38, T45*3050/3660mm
Capaciteit hydraulische tank
18L
55L
Voedingsslag
3980 mm
3980 mm
Maximale voorwaartse stuwkracht
11KN
11KN

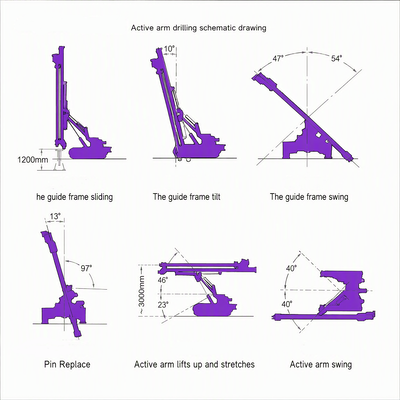

Glijdende frameschommel
links 47°/rechts 54°
Links 47°/Rechts 54°
Kanteling van de boorboom
Omhoog 46°/Omlaag 23°
Omhoog 46°/Omlaag 23°
Schommeling van de boorboom
Links 40°/Rechts 40°
Links 40°/Rechts 40°

Rups Pneumatische Boormachine Sterke Voedingsprestaties Mijnbouwboorinstallatie Hydraulische DTH Boorinstallatie Fabrikant

Rups Pneumatische Boormachine Sterke Voedingsprestaties Mijnbouwboorinstallatie Hydraulische DTH Boorinstallatie Fabrikant

Rups Pneumatische Boormachine Sterke Voedingsprestaties Mijnbouwboorinstallatie Hydraulische DTH Boorinstallatie Fabrikant

Rups Pneumatische Boormachine Sterke Voedingsprestaties Mijnbouwboorinstallatie Hydraulische DTH Boorinstallatie Fabrikant

Rups Pneumatische Boormachine Sterke Voedingsprestaties Mijnbouwboorinstallatie Hydraulische DTH Boorinstallatie Fabrikant


Rups Pneumatische Boormachine Sterke Voedingsprestaties Mijnbouwboorinstallatie Hydraulische DTH Boorinstallatie Fabrikant


Bedrijfsprofiel

Rups Pneumatische Boormachine Sterke Voedingsprestaties Mijnbouwboorinstallatie Hydraulische DTH Boorinstallatie Fabrikant

Rups Pneumatische Boormachine Sterke Voedingsprestaties Mijnbouwboorinstallatie Hydraulische DTH Boorinstallatie Fabrikant

Rups Pneumatische Boormachine Sterke Voedingsprestaties Mijnbouwboorinstallatie Hydraulische DTH Boorinstallatie Fabrikant

Rups Pneumatische Boormachine Sterke Voedingsprestaties Mijnbouwboorinstallatie Hydraulische DTH Boorinstallatie Fabrikant

Rups Pneumatische Boormachine Sterke Voedingsprestaties Mijnbouwboorinstallatie Hydraulische DTH Boorinstallatie Fabrikant


Rups Pneumatische Boormachine Sterke Voedingsprestaties Mijnbouwboorinstallatie Hydraulische DTH Boorinstallatie Fabrikant
Biedt u ontwerpteken- en aanpassingsdiensten voor complete machines en boorgereedschappen?
Geef uw technische specificaties of achtergrondgegevens van het project op en wij staan ​​klaar om een ​​voorstel op maat te ontwikkelen op basis van uw vereisten.
Dit omvat 2D- en 3D-ontwerptekeningen, geleverd in verschillende formaten, waaronder DWG, PDF, STEP en IGES.
Ons engineeringteam is gespecialiseerd in het ontwikkelen van op maat gemaakte oplossingen die voldoen aan uw specifieke operationele vereisten, geologische omstandigheden en prestatiedoelstellingen.

1.Wat kunt u bij ons kopen?
Tunneling Jumbo-booreiland, DTH-booreiland, automatisch booreiland met staafwisselsysteem, roterend booreiland, heimachine, kernbooreiland, waterputbooreiland, op een vrachtwagen gemonteerde waterputbooreiland, schroefluchtcompressor, zuigerluchtcompressor, pneumatische rotsboor, boor, tricone-bit, excentrisch behuizingssysteem, DTH-hamer, boorstang, reserveonderdelen etc.

2. Hoe kan ik betalen?
A: U kunt direct online betalen met creditcard, of TT, Western Union, LC enz.

3. Hoe verloopt de verzending? Hoe lang duurt het?
A: Voor grote hoeveelheden of zware producten verzenden wij via zeevervoer of landvervoer. De verzendefficiëntie is afhankelijk van het land en de stad waarnaar u wilt verzenden. Voor kleine en delicate producten verzenden wij met DHL, UPS, Fedex of TNT. U kunt ook de gewenste verzendmethode aangeven voordat we verzenden.

4. Hoe is uw kwaliteitscontrole? A: We hebben onze eigen ervaren QC. Elke bestelling wordt strikt geïnspecteerd en getest voordat deze wordt verzonden.

5. Heeft u een autorisatiecertificaat?
A: Onze machines zijn CE-gecertificeerd.
